Historic Building Laser Scanning in New Orleans

Reality IMT documented an early-20th-century historic building in the Vieux Carré using high-density 3D laser scanning, point-cloud processing, and Scan-to-BIM workflows to support preservation, restoration planning, and future renovation.

Location

New Orleans, Louisiana

Asset Type

Historic Commercial Building

Primary Service

3D Laser Scanning & Scan-to-BIM

Primary Use

Preservation & Renovation Planning

Project Overview

Project Summary

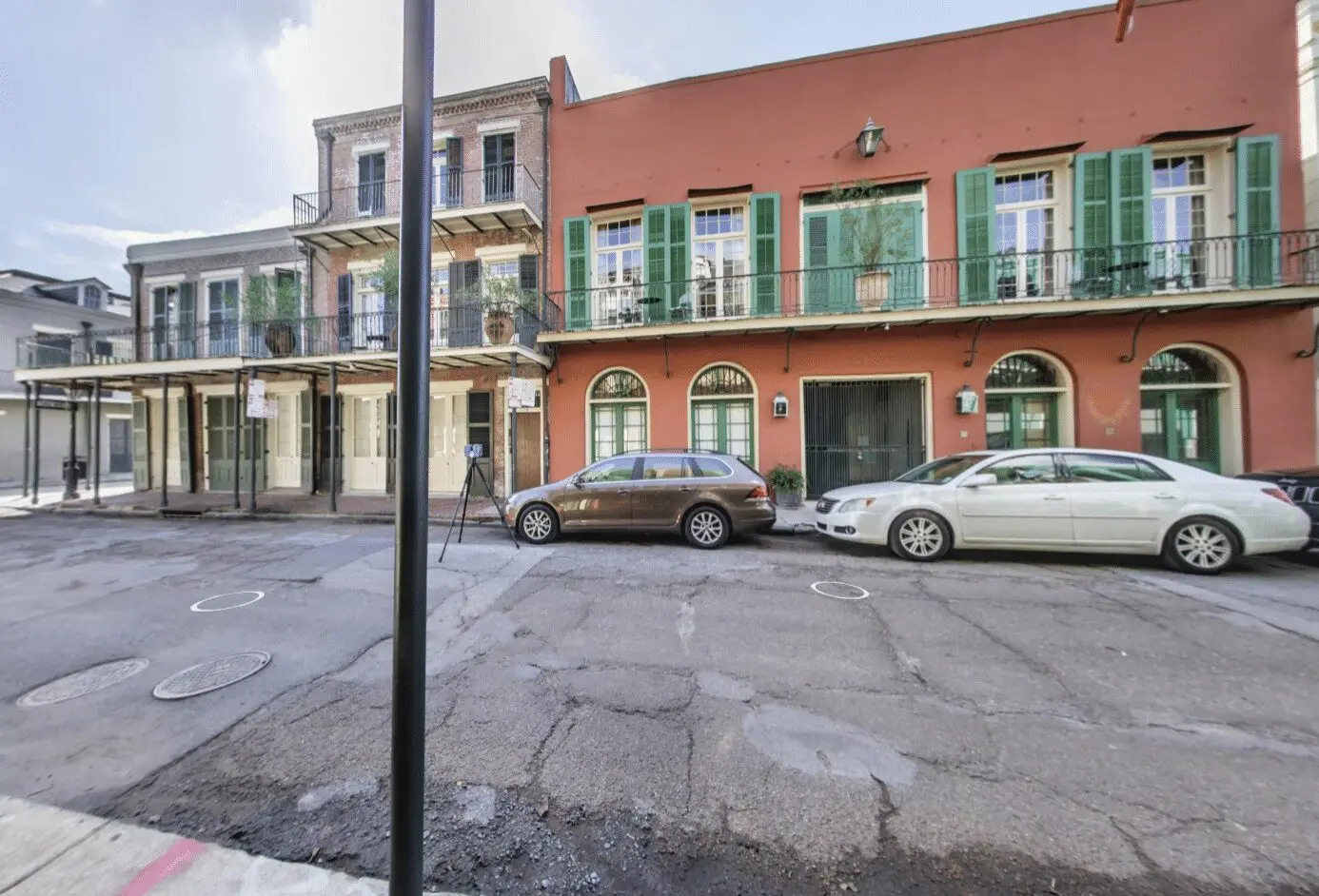

The Vieux Carré Historic District in New Orleans contains some of the city’s most significant architectural fabric. Buildings within the district often include irregular geometry, historic masonry, ornamental façades, balconies, courtyards, and generations of undocumented modifications.

Reality IMT was engaged to document a historic building within the district using high-density 3D laser scanning and Scan-to-BIM workflows. The objective was to create an accurate digital record of the building’s visible existing conditions for preservation planning, renovation design, and future reference.

Because historic structures frequently lack complete or reliable drawings, preservation teams often need a measured baseline before evaluating interventions. The resulting point cloud and derived model provided a coordinated reference for architectural details, spatial relationships, and existing-condition geometry that would have been difficult to capture through conventional field measurements alone.

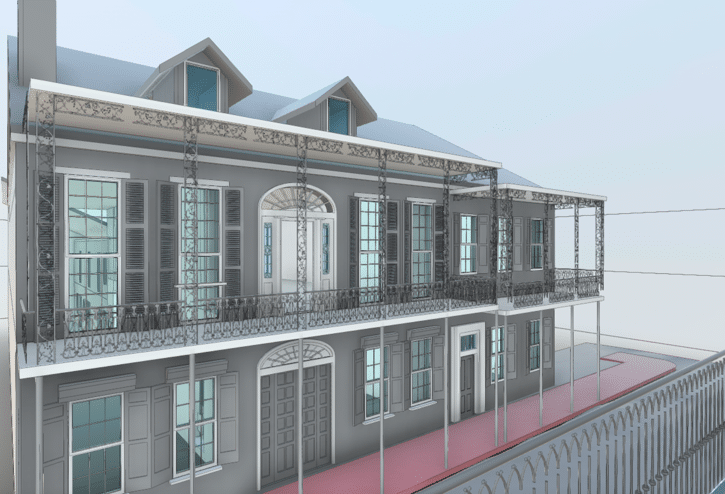

French Quarters 3D Laser Scanning-NOLA As-Built — French Quarters 3D Laser Scanning to BIM

Client Need

Why Historic Buildings Require a Different Documentation Approach

Historic buildings are rarely simple to measure. Their geometry may include settlement, non-orthogonal walls, uneven floor levels, decorative façades, irregular openings, concealed transitions, and alterations performed over many decades.

Irregular Existing Conditions

Historic buildings often contain walls, floors, roofs, and openings that do not align with modern assumptions or standardized dimensions.

Incomplete Legacy Records

Original drawings may be missing, outdated, or inconsistent with later renovations and field modifications.

Preservation-Sensitive Work

Documentation must support future design without unnecessarily disturbing fragile finishes, historic materials, or architectural details.

Project Details

Project Type

Historic Existing-Condition Documentation

Location

New Orleans, Louisiana

Primary Industry

Architects & Engineers

Facility / Asset Type

Historic Commercial Building

Primary Service

3D Laser Scanning

Supporting Services

As-Built Documentation

As-Built Drawings

Existing-Condition Documentation

Historic Preservation Support

Scan-to-BIM

Project Purpose

Preservation, Restoration and Renovation Planning

Deliverables

Registered Point Cloud
High-Fidelity Revit Model
Restoration-Ready CAD Documentation
High-Resolution Visual Record
Façade and Courtyard Documentation
Ornamental Detail Reference

Client

Confidential

Deliverables

Registered Point Cloud, Revit Model, CAD Documentation, High-Resolution Visual Record

Reality IMT’s Approach

Non-Contact Documentation for a Complex Historic Structure

Reality IMT structured the work to create a measurable record of visible building conditions while minimizing reliance on manual contact measurement and reducing the need for repeated site visits.

Field Planning

The team identified interior and exterior areas, anticipated occlusions, and planned scan positions around complex historic geometry.

High-Density Laser Scanning

Multiple scan positions captured walls, openings, façades, balconies, interior spaces, and other visible architectural features.

Registration and QA/QC

The scan data was registered, reviewed, cleaned, and checked for coverage before production modeling began.

Scan-to-BIM Production

Verified geometry was translated into a coordinated Revit model and supporting CAD documentation for preservation and planning use.

Preservation Value

What Laser Scanning Adds to Historic Preservation

Accurate Baseline Record

The point cloud preserves a measurable record of visible conditions before renovation, restoration, or further deterioration.

Architectural Detail Capture

Dense spatial data helps preserve the relationship between façades, openings, balconies, walls, and interior geometry.

Remote Design Review

Architects and consultants can review conditions from the office and reduce unnecessary return visits during early planning.

Renovation Coordination

Measured digital geometry provides a stronger foundation for restoration drawings, design alternatives, and constructability review.

Future Reference

The digital record can support later maintenance, documentation updates, and preservation decisions.

Reduced Reliance on Assumptions

Project teams can work from measured conditions rather than interpreting incomplete or outdated legacy documents.

Project Outputs

Deliverables Provided

The final deliverables created both a measurable technical reference and a visual record of the building’s current condition.

Registered Point Cloud

High-density spatial data representing the visible interior and exterior geometry of the historic building.

High-Fidelity Revit Model

A coordinated existing-condition model developed from the point cloud for architectural review and planning.

Restoration-Ready CAD Documentation

Measured drawings and reference geometry for preservation and renovation workflows.

High-Resolution Visual Record

Project imagery and scan views preserving the building’s visible architectural character.

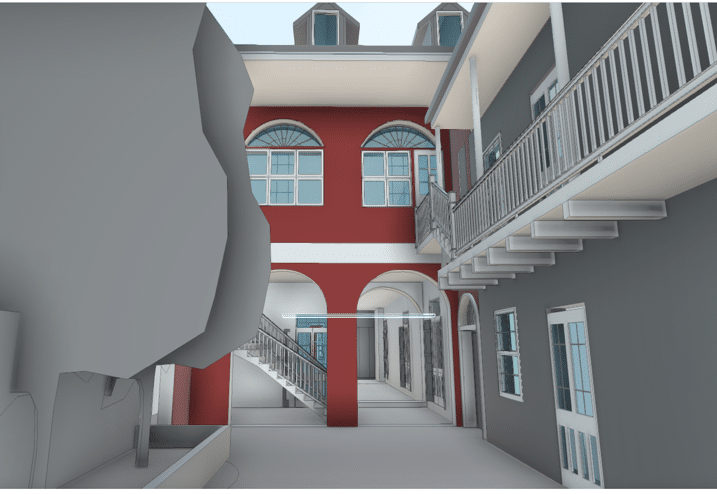

Façade and Courtyard Documentation

Focused documentation of exterior and semi-enclosed spaces with significant historic detail.

Ornamental Detail Reference

Digital views of architectural details that may be difficult to measure accurately using manual methods alone.

Project Outcome

A Reusable Digital Record for Preservation and Renovation

The completed documentation provided the project team with a coordinated digital record of the building’s visible existing conditions. The point cloud and model established a stronger basis for preservation planning, design development, and future renovation decisions.

By creating a current baseline before further work, Reality IMT helped reduce dependence on incomplete legacy information and gave architects and consultants a reusable reference for continued project development.
